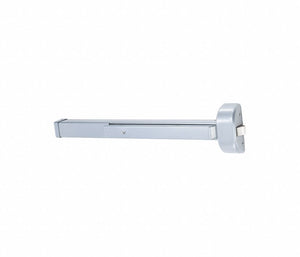

Arrow Lock & Door Hardware S1200 Rim Exit Device

Arrow Lock and Door Hardware S1200 Rim Exit Device

Chassis & Cover - Non-ferrous alloy

End Cap - Black lexan

Rail Assembly - Steel or stainless steel Rail Size - Furnished standard for 30" to 36" doors. Rails may be cut to size in the field. Code requires rails to exceed 50% of door width, therefore maximum door width should not exceed 60". Longer rails available for doors 36" to 48".

Doors - Wood or hollow metal, 1-3/4" thick with 4-1/2" minimum stile. 4-5/8" for fire-labeled devices. Will fit doors cut for ANSI 161 door prep.

Hand - Non-handed.

Strikes - S38 surface applied furnished standard. S36 Double door strike for double doors without mullion.

Latchbolt - 3/4" throw stainless steel.

Dogging - Hex key dogging standard. Cylinder dogging available.

Trim - One chassis will accept all trim designs and functions. Through bolts - To order separately, specify S52 for S1200, F-S52 for F-S1200, and finish.

Finish - AL - Powder coat aluminum

Certification- Certified to conform to the standards of ANSI/BHMA A156.3    Type 1 Grade 1.

U.L. listed for panic, standard. Labeled for 3 hour or lesser fire doors. To order, add prefix "F" to device.

Made in the USA.

Mfg. # S1250AL36
